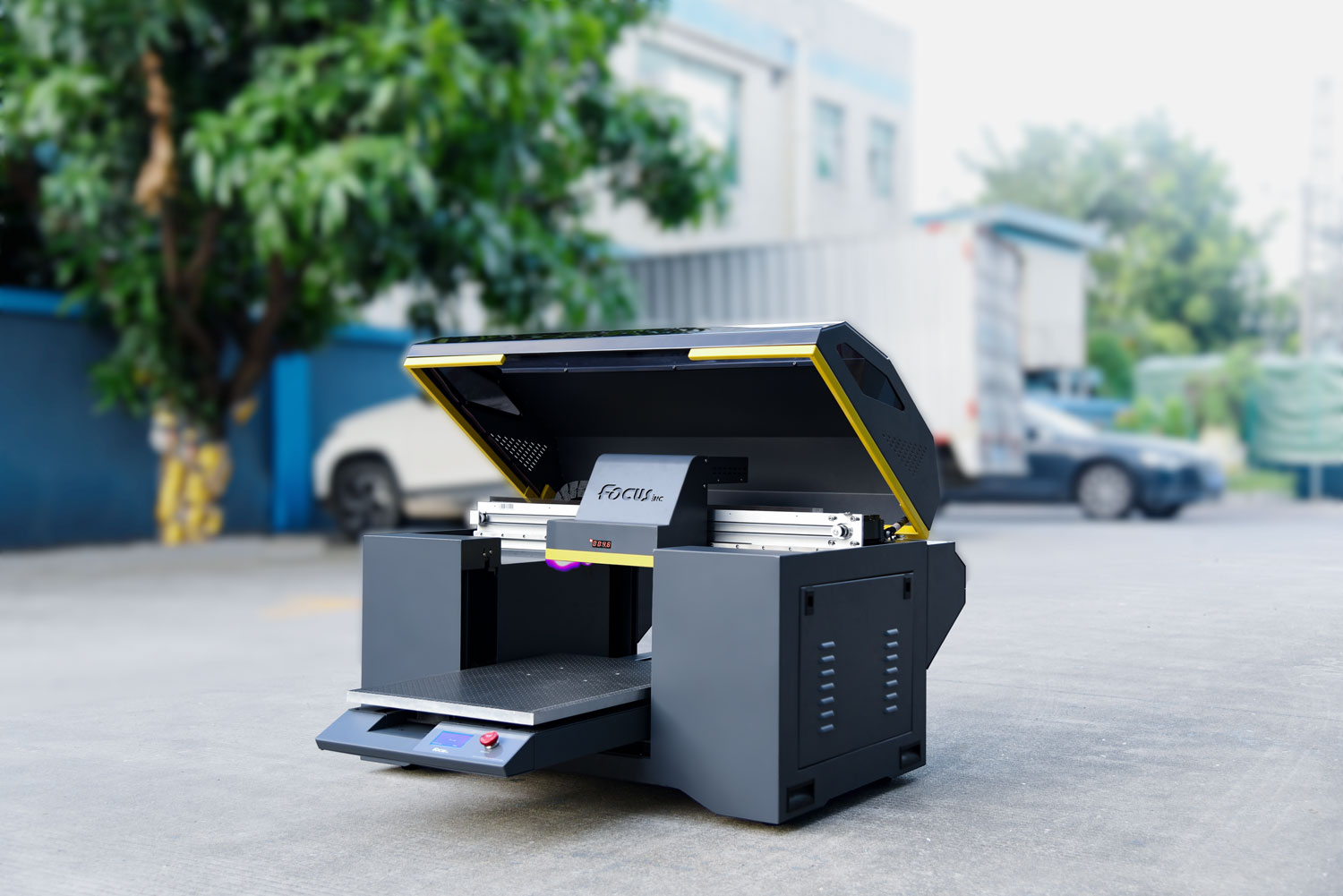

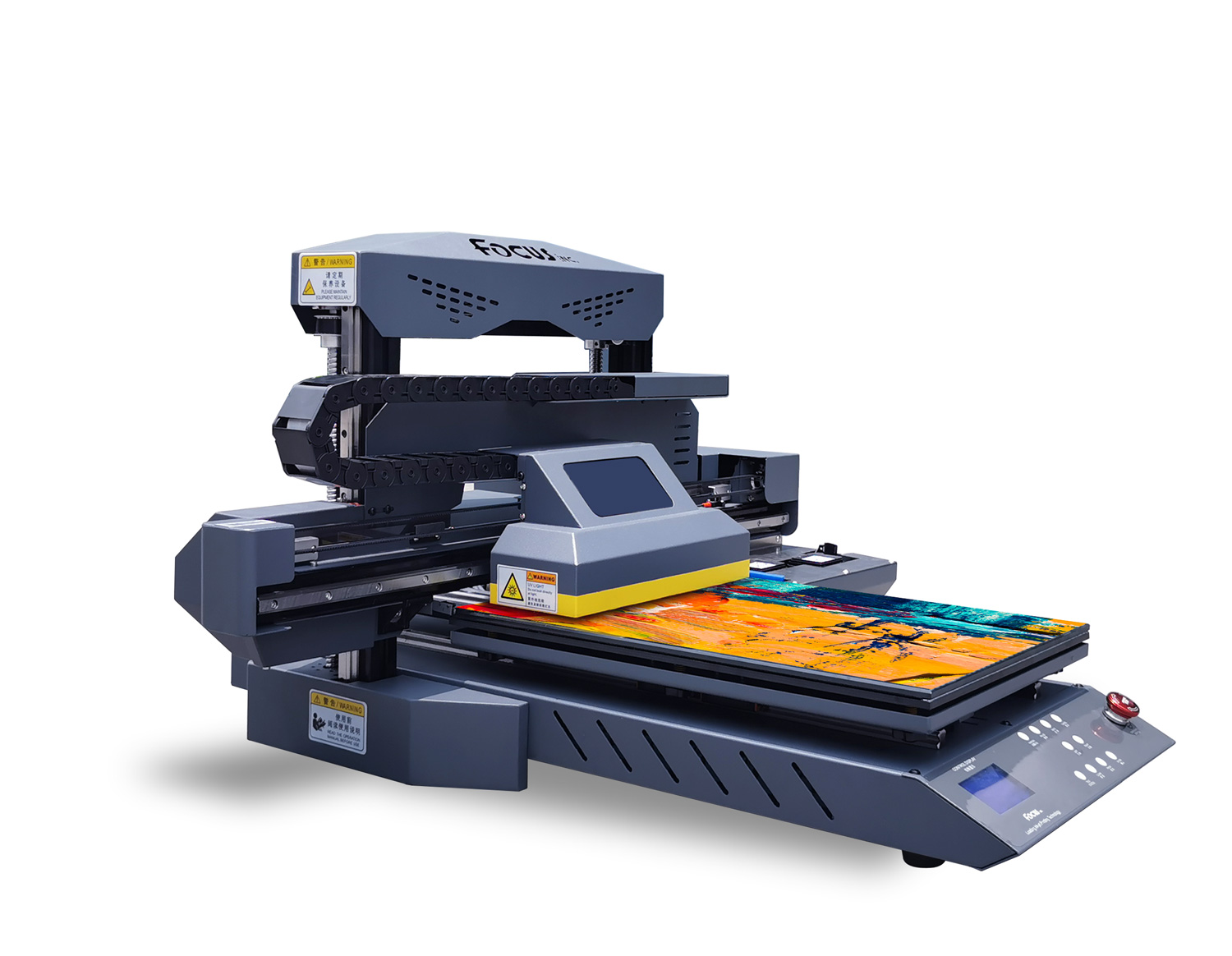

FOCUS Alpha-Max 6250 UV Printer

The A2 Alpha-Max 6250 UV printer is a new type of machine that is technically upgraded on the basis of the A2 Alpha-jet. It uses 3 pcs Eps i3200 printheads, with a print size of 62 × 50cm, suitable for commercial or industrial printing production.

INQUIRY PDF Format

Description Specification Printing Video

Focus A2 size Alpha-Max 6250 UV Direct to Substrate printer

Please Click PRINTING DEMO above for more videos.

Q1.Are you a manufacturer or just a trader?

A1.We are a manufacturer, our own factory located in Shenzhen, and two branch offices in Shanghai and Shenzhen. With the R & D team, we provide create-oriented unique UV and DTG printers with all clients. We are committed to provide high-quality, environmental-friendly UV and DTG printers, devoted ourselves to technological innovation.

Q2.What materials can this printer print?
A2.It can print on ceramic, metal, glass, wood, acrylic, PVC, plastic etc.

Q3.Can the UV printer print varnish and embossed effects?
A3.Yes, please contact us, would like to show you the beautiful effects.

Q4.How about the warranty?
A4. We provide a 13-month warranty, excluding print heads and ink system.

Q5.Do you provide spare parts and ink too? Where can I get them
A5. Yes, We can also provide you with the original spare parts

Q6.This is my first time to print, will you support me?
A6. Sure, we provide the tutorial videos, manuals. And our engliness will provide you with online guidance.

Q7.Does it can print bottles?
A7. Yes, it can.

Q8. Is the printer equipped with an automatic cleaning system?
A8. Yes, it can perform automatic cleaning.

People are also interested in

Epson-i3200 Galaxy-jet max 6090 UV printer

Epson-DX10 Alpha-jet A2 UV printer

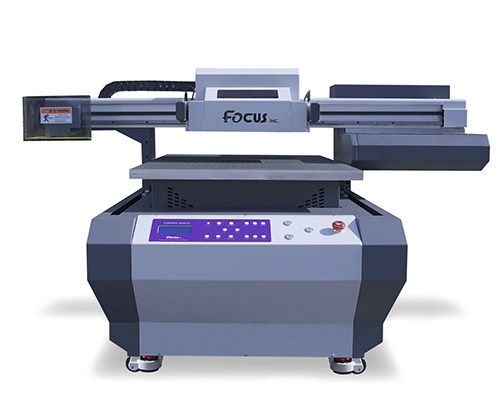

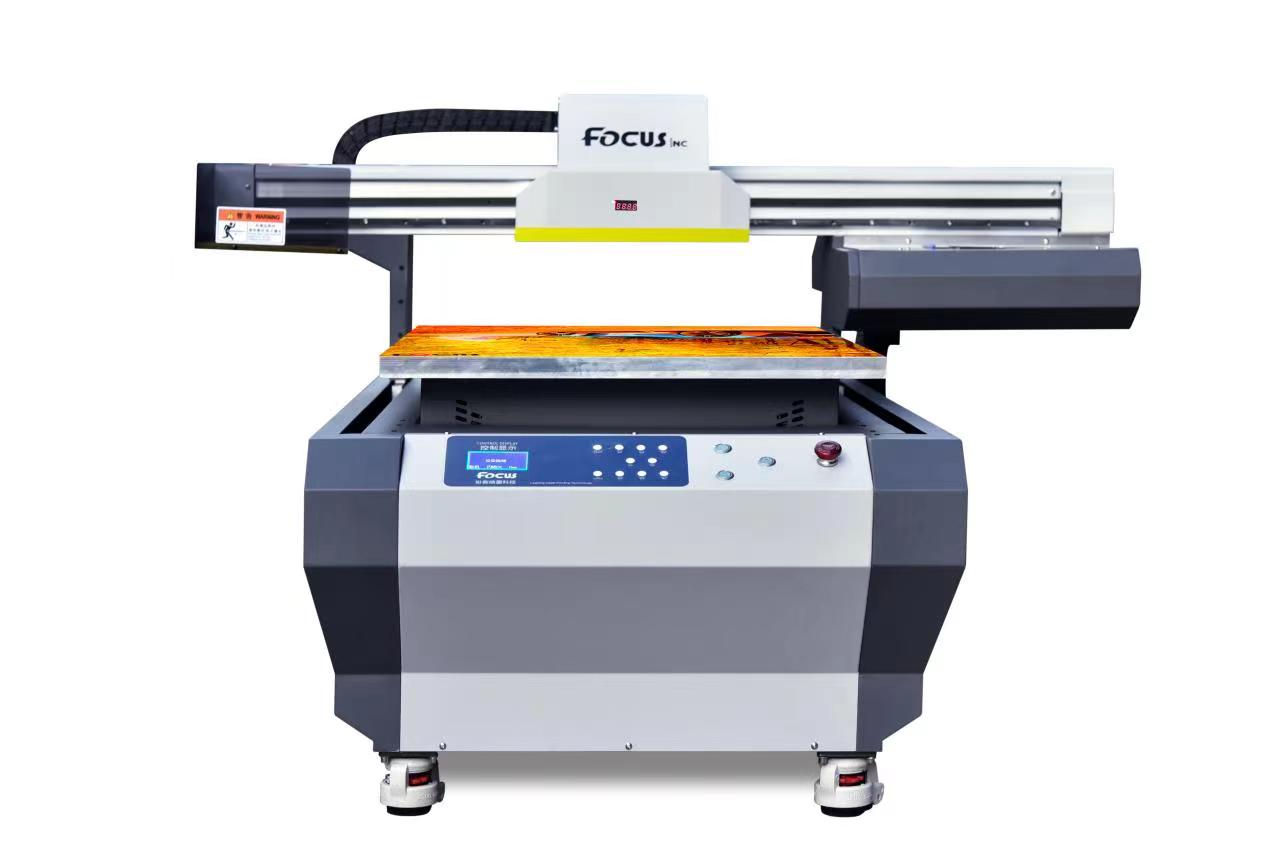

Epson-DX10 Galaxy-jet 6090 UV printer

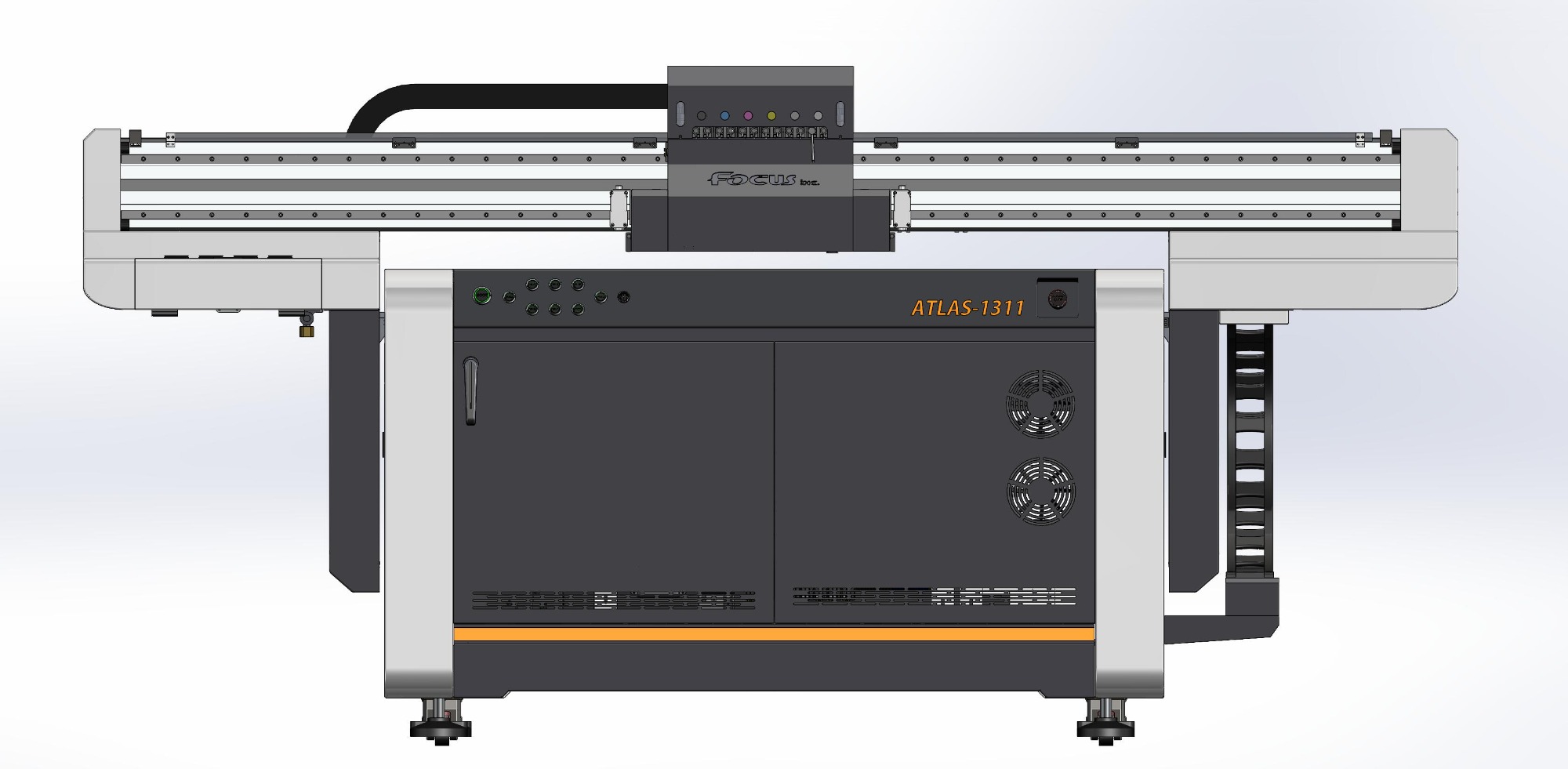

Epson-i3200 Atlas 1311 large format flatbed UV printer

Epson-DX10 Combo-jet A3 small desktop UV printer

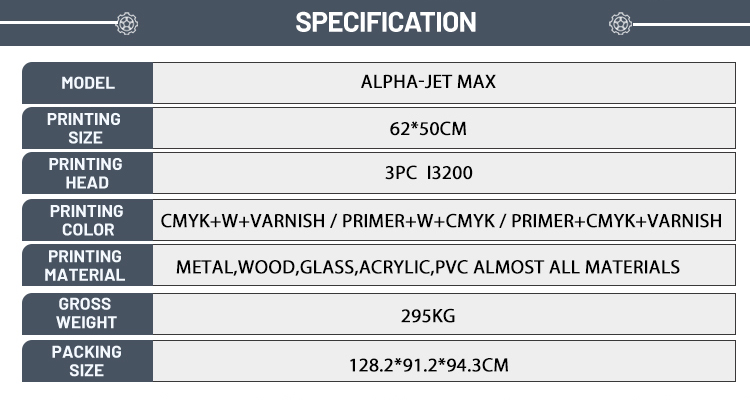

Focus Inc. Alpha Max-6250 i3200 U1 Specifications
Printing method		PrecisionCore MicroTFP Piezo ink-jet technology

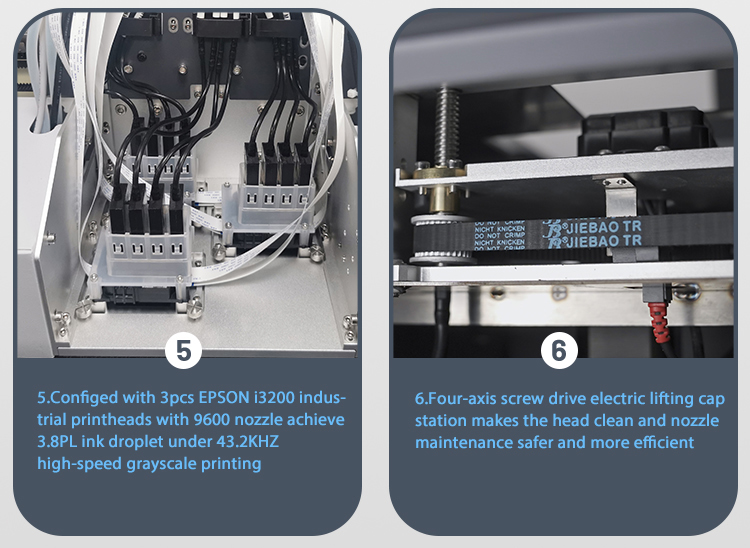

Print head	Standard configuration	1~3pcs of EPSON i3200 U1 heads
	Number of nozzles	3,200 staggered, 400 x 8 rows
	Jetting frequency	43.2kHz (Binary), 21.6kHz (4 levels)
	Drop volume	Binary: 5 pl at 43.2 kHz
		3 levels gray scale: 6, 12.5 pl at 21.6 kHz
		4 levels gray scale: 3.8, 6.2, 9.3 pl at 21.6 kHz
Max. droplet height		1~10 mm gap MEMS technology depending on ink
Print resolution (dots per inch)		720600dpi 720900dpi 7201200dpi 7202400dpi Uni-direction/Bi-dirction

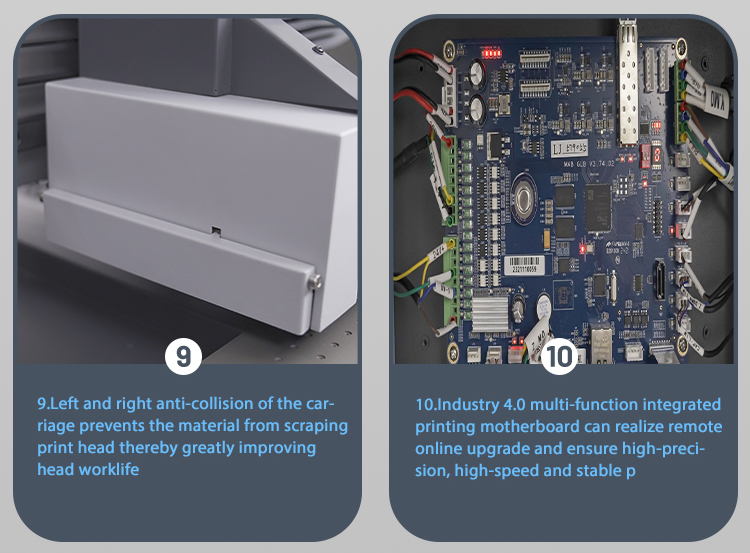

Print Head protection technology		Auto carriage anti-scratch sensor & electromagnetic detect kit

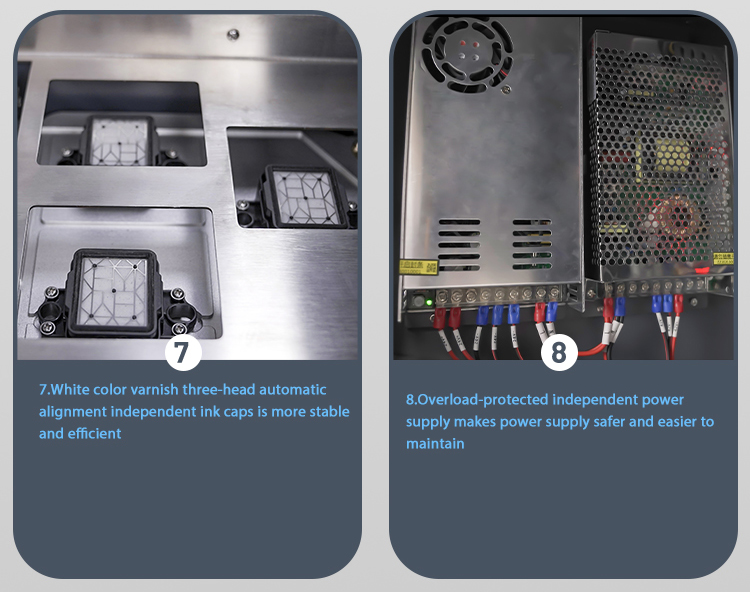

Print Head mainten technology		Keep wet cap station system & clean &Flashing during printing and idle
Media optimize technology		2pcs ionizer eliminator to remove static on media
Media height detect	Automatic gap detect	Parameter input & electromagnetic kit
Media	Maximum printing area	24.4 (width) × 19.6 (length) in. (620×500 mm)

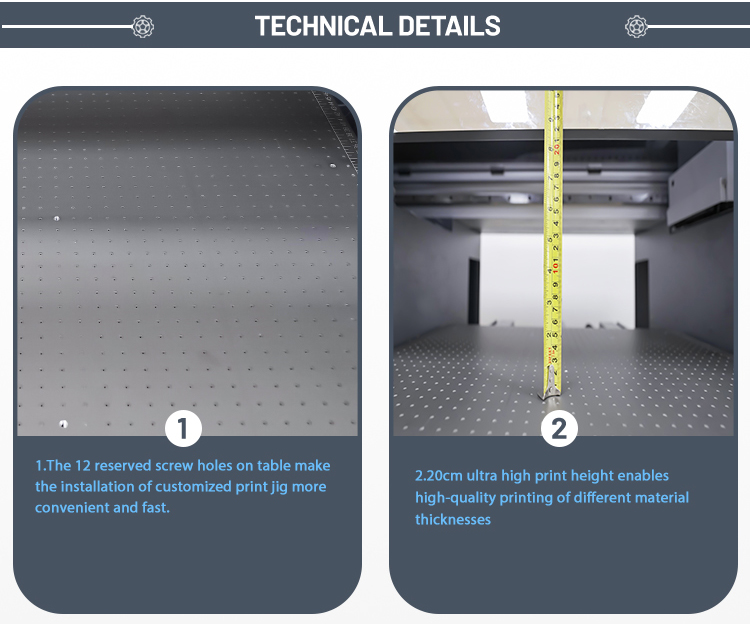

	Maximum thickness	7.87 in. (200mm)
	Maximum weight	92.4 lbs/m2 (42kg/m2)
Ink	Type	UV Curable Ink, Solvent, Aqueous
	Color	KCMY+W+VARNISH / PRIMER+W+KCMY / PRIMER+KCMY+VARNISH
	Ink tank capacity	500ml per each color
Ink process unit	Ink supply system	Automatic refill positive pressure
Ink process unit	Ink filt system	10μ filter damper
Ink curing unit	Cooling technology	Water circulation cooling
	Curing technology	405nm UV-LED lamp * 3pcs
	UV lamp power	Total 3pcs: 850W (400W2pcs+50W1pcs Adjustable)
Media vacuum system	Vacuum power	800W
	Vacuum area	Full flatbed area adsorption
	Vacuum control	Electronic button switch control
Add-on jig kit (Optional)	Electronic Rotary jig	Diameter 12mm~200mm adjustable
Add-on jig kit (Optional)	Custom design jig	Available

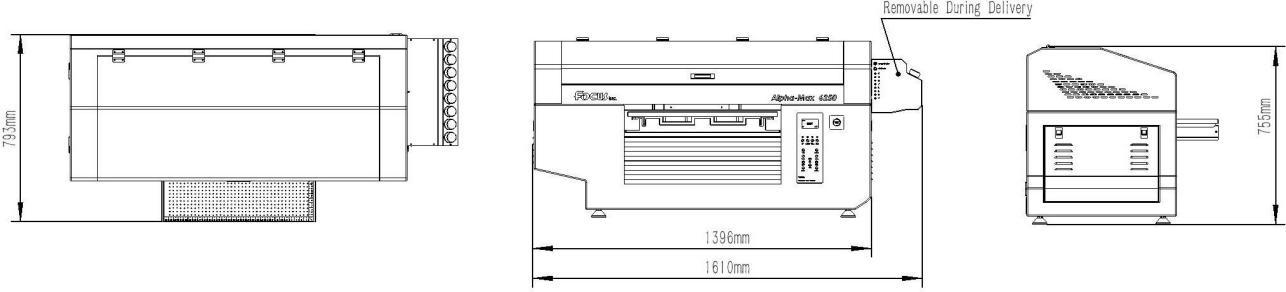

Dimensions	Machine size	45.7 (W) × 31.3 (L) × 30.0(H) in. (1,162×794× 763mm)
Dimensions	Packing size	50.4 (W) × 35.9 (L) × 37.1 (H) in. (1,282 × 914× 943mm)
Weight	Net weight	440 lb (200 kg)
Weight	Gross weight	649 lb (295 kg)
Environment	Temperature	59 to 86 °F (15 to 30 °C)
Environment	Humidity	40 to 80
Connectivity		Ethernet cable
Included items		Ethernet cable, cleaning kit, USB Flash of manuals and installation videos, Ink filter
Rated Working power		480Watt
Power requirements		15A Single-phase 220 V, 50HZ
Acoustic noise level		63 dB (A) or less

Software System Requirements
Print control	System	Windows® 7/10 (64 bit) Recommend
(Bundled)	CPU	Intel® Core™ i5, 2.5 GHz or more
	RAM	8 GB or more
	Video card and monitor	A resolution of 1,152 × 854 with 16 bit color or higher
	HDD	Install space 1 GB or more
	HDD	Working space 100 GB

1).Lipstick tube rotary printing by focus Alpha max DTS uv flatbed printer with i3200 uv print head

2).Focus industrial DTS Direct to Substrate Alpha-Max 6250 UV printer toilet seats printing:

3). Magic cube uv printing by Focus Alpha Max 6250 Industrial UV flatbed printer:

4). Oil paiting canvas uv printing by Focus A2 Alpha max 6250 UV printer:

5). Wood carving flower UV printing by Focus Inc Industrial UV flatbed printer with industrial i3200

6). Wooden champagne box UV printing by Focus Inc Alpha Jet Max 6250 UV dts printer:

7). FOCUS ALPHA JET A2 MAX 6250 Industrial direct to substrate and rotary mug bottle uv printer:

8). Online installation tutorial video:

Please subscribe Focus inc. Youtube for more printing demo and installation video.
