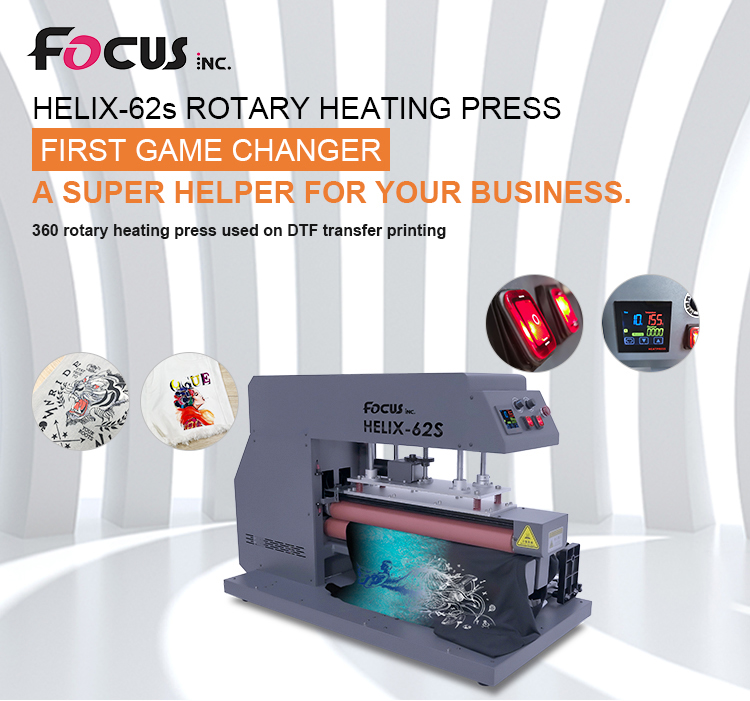

Focus Helix 360° Rotary Heat press machine

Max. Transfer width: 600mm
Max. Transfer length: No limited
Max. Transfer height: 0~80mm
Film & Paper type: Garment DTF film，UV DTF film， Foil film，Sublimation paper

INQUIRY PDF Format

Description Specification

Focus Inc. HELIX-62S Specifications
Product name		360° Rotary Heat press machine
Product model		Focus Helix-62S
Printing method		Heat transfer printing
Motion method		Full electronic automatic ( No air compressor needed)
Max. Transfer width		600mm
Max. Transfer length		No limited

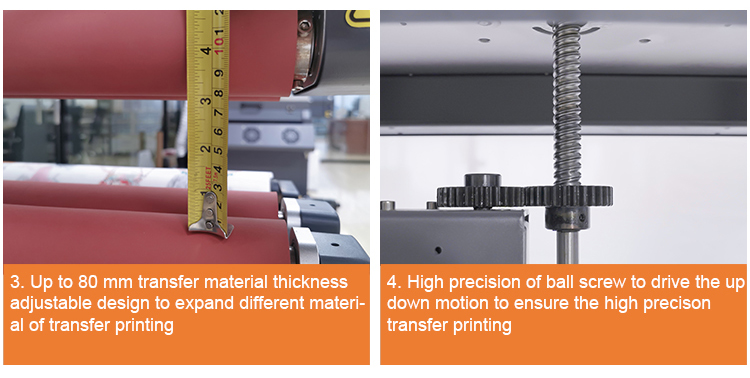

Max. Transfer height		0~80mm
Media type	Garment DTF Transfer	Garment DTF film transfer on gament as T shirt, pants, bag, tile... Based on cotton, Nylon, Linen, Polyester, Chemical fiber, Leather etc
	UV DTF Transfer	UV DTF film transfer on flatbed or rotary substrates
	Foil Transfer	Foil DTF film transfer on flatbed or rotary substrates
	Sublimation tansfer	Sublimation paper transfer on substrate or garment material
Film & Paper type		Garment DTF film，UV DTF film， Foil film，Sublimation paper
Film & Paper size		Roll type film with size small than 60cm & Piece film
Heating temperature		0~400°C by two pieces of Tungsten wire heating device
Temperature controller		Automatic LED touch screen
Transfer speed		Speed adjustable according to film type and material

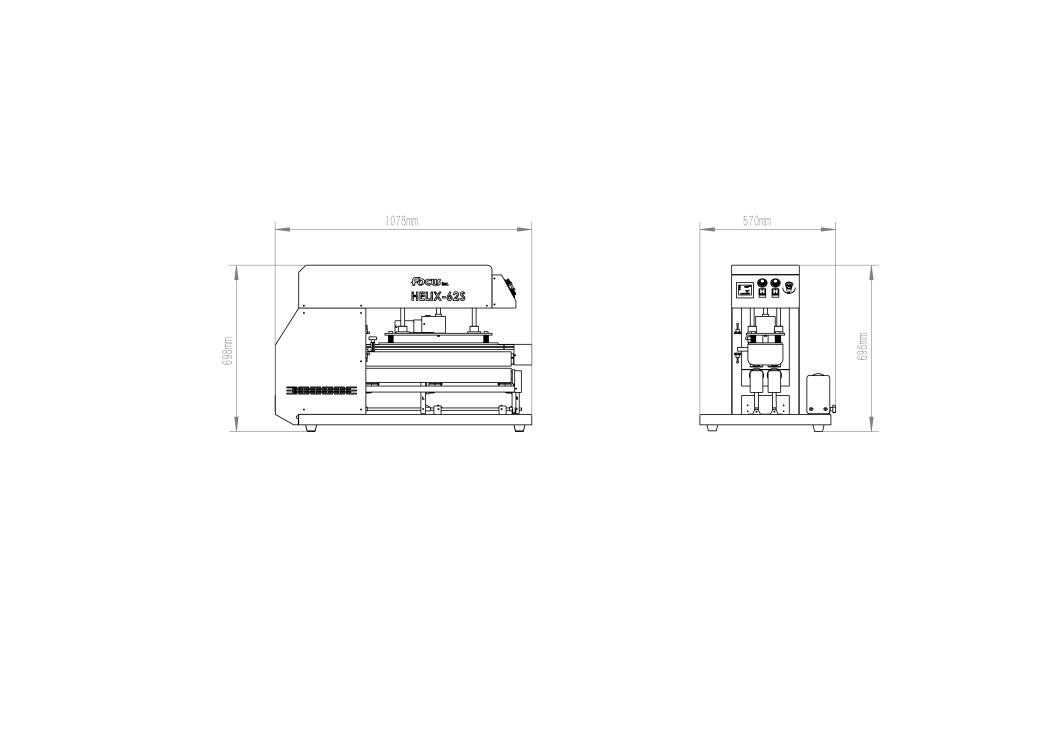

Dimensions	Machine size	42.4(W) × 22.5(D) × 27.5(H) in. (1078× 570× 698mm)
	Packing size	44.5(W) × 24.5(D) × 31.5(H) in. (1130 × 620 × 798mm)
Weight	Net weight	187 lb (85 kg)
	Gross weight	253 lb (115 kg)
Working Power		1200W
Power requirements		8A Single-phase 220 V, 50HZ
Acoustic noise level		55 dB (A) or less
