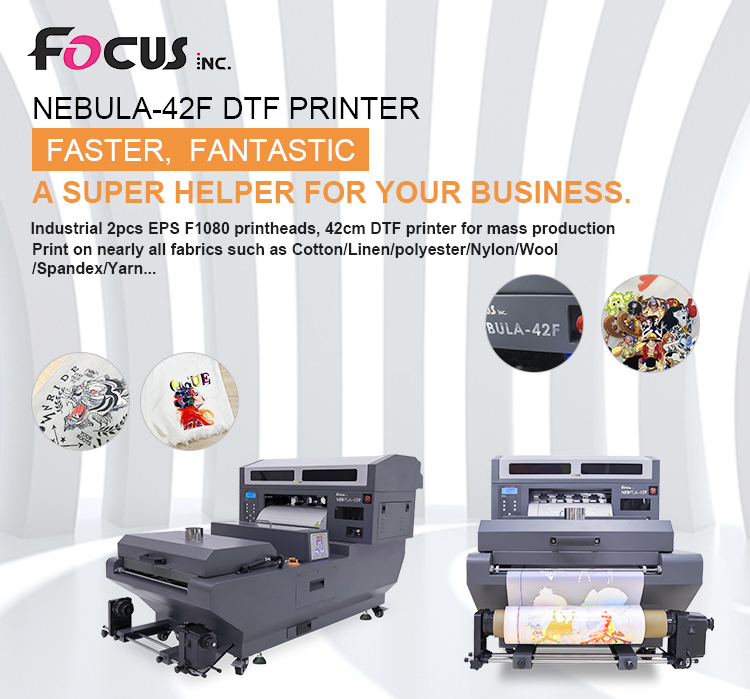

FOCUS Nebula-42F 42cm DTF Printer

Print head: 2pcs*EPS F1080 Piezo print head
Print resolution: 360*1080dpi,360*2160dpi,720*2160dpi;Uni-direction/Bi-direction
Media type: Film, paper, leather etc with thickness less than 3mm
Maximum printing width: 420mm
Color: KCMY LC LM+W
Description Specification PRINTING VIDEOS















Q1:What is the difference of DTG and DTF?
A1:DTG(Direct to garment),directly printing on Garment.
      DTF(Direct to film), directly printing on film, then transfer on your fabric products.

Q2:How many sq.m/h is the machine speed?
A2:It is 6.5sq.m/h - 20sq.m/h depending on your image size , picture type setting, printing mode, precision, etc.

Q3:This is my first time to use the machine, how will you support me?
A3:Sure,we provide the tutorial videos manuals. And our engineer team also can support you via online chat, video call and Team-viewer etc.

Q4:Do you provide spare parts and ink too? Where can I get them?
A4:Yes, we can also provide you with the original spare parts and ink too. Contact us now for more details please.

Q5:How long is the warranty?
A5:We provide a 13-month warranty, excluding print heads, encryption card and ink system parts.

Q6:What print head does the machine use?
A6:2~4 PCS EPS 4720/I3200 Print heads

Q7:Can you ship the machine to my country?
A7:Of course, we have over 15 years global business experience and support global business.

Q8:Does the machine easy to clean?
A8:Yeah, normally it will take your 5 min for daily cleaning, just follow the tutorial video.

Q9:How does your machine protect clogging?
A9:Firstly our machine supports white ink circulation system, which will protect ink from precipitation.
       Secondly the ink stirring system will make ink printed more smoothly via print heads.
       Thirdly the ink filtration system will filter large particles to ensure good quality of ink for printing.

Q10:How can I contact your factory directly? Are you factory or trader?

A10:Send an inquiry now, our representative from factory will support you.We are a manufacturer, our head factory located in Shen zhen and branch offices in Shanghai, Shenzhen, Shandong etc. With the R& D team, we provide createoriented unique UV and DTG printers with all clients. We are committed to provide high-quality, environmental-friendly UV and DTG printers, devoted ourselves to technological innovation.


People are also interested in

Focus Nebula-62F DTF Printer
Focus Inc. Nebula-42F Specifications
Printing method Piezo ink-jet technology
Print head Standard cofiguration 2pcs*EPS F1080 Piezo print head
Number of nozzles 2160 staggered, 180 x 12 rows (180 x 6 rows per each head)
Jetting frequency 16kHz max.
Drop volume 3.5~21pl (Variable data single drop & multi drop)
Print resolution (dots per inch) 360*1080dpi, 360*2160dpi,720*2160dpi; Uni-direction/Bi-dirction
Print Head mainten technology Auto keep wet cap station system & Clean flashing during printing and idle
Media type Roll feed media Film, paper, leather etc with thickness less than 3mm
Media Maximum printing width 420mm Width X, Roll feed Y
Film type DTF film Professional Release liner DTF film
Transfer media Garment transfer Cotton, Nylon, Linen, Polyester, Chemical fiber, Leather etc.
Film Feeding Automatic Release Automatic tenssion release roller
Film Take up Automatic Take up Automatic detect electronic take up Roller
Film vacuum system Automatic adsorption Automatic adsorption aluminum vacuum table
Film size Roll type 400mm*100meter/Roll 、 310mm*100meter/Roll
Ink Type Aqueous DTF pigment ink
Color KCMY LC LM+W
Ink tank capacity 220ml per each color; 500ml for white ink tank
Ink process unit White ink Stirring Automatic white ink stirring system
White ink circulation Automatic white ink circulation system
Powder type Hot melt powder Grossus, Medium, Fines
Powder dusting Automatic detect Automatic detect & Speed adjustable
Powder recycle Optional add-on Automatic electric recycle belt, optional add-on
Powder melt baking Hot melt Far infrared rays baking @ Speed adjustable

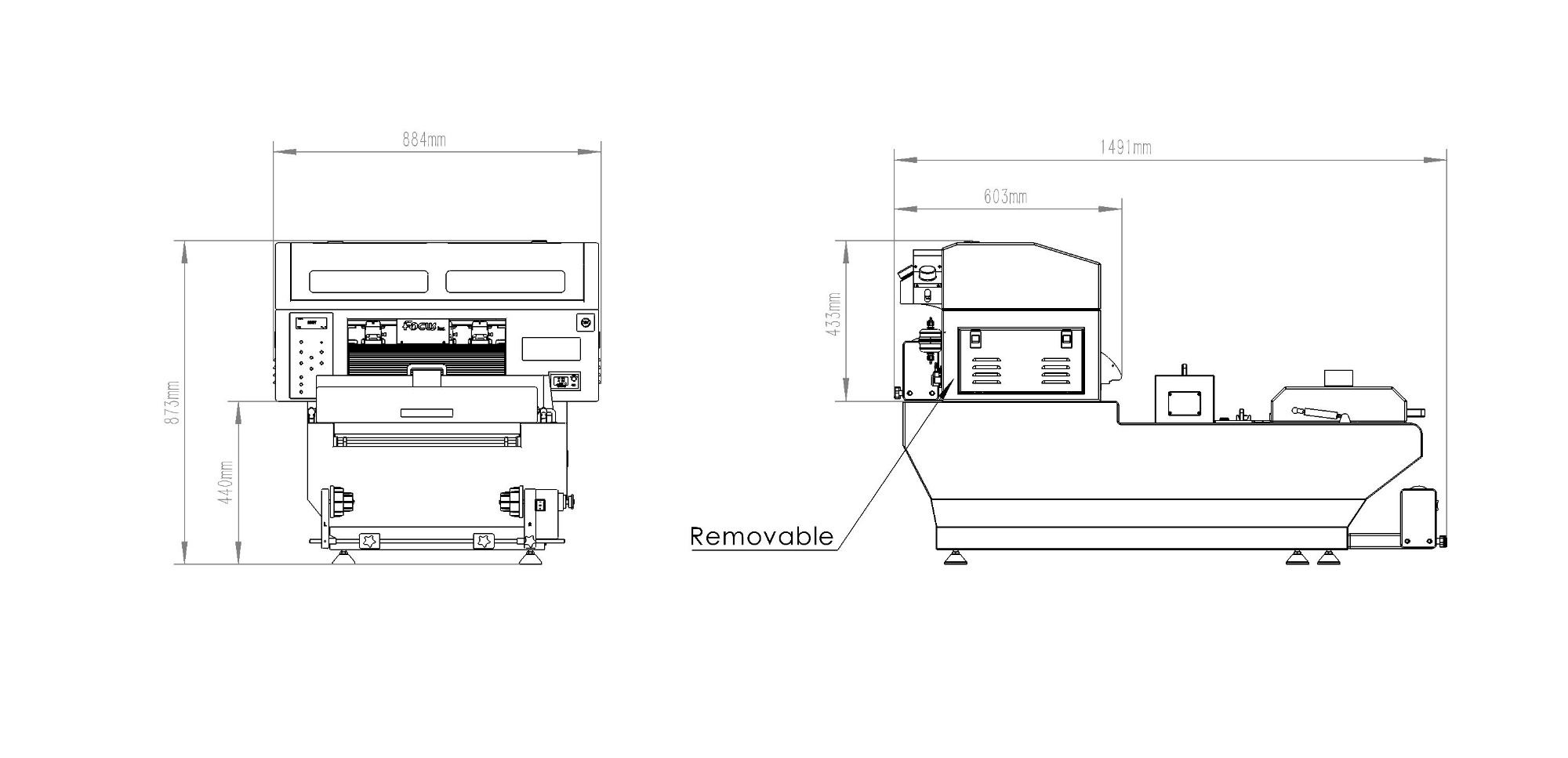

Dimensions Machine size Printer: 34.5(W) × 23.6(D) × 16.9(H) in. (876× 600× 431mm)
Powder process system: 27.5(W) × 57.5(D) ×19.6(H) in. (700× 1,461× 500mm)
All in one: 34.8(W) × 58.7(D) ×34.3(H) in. (884× 1,491× 873mm)
Packing size 39.3(W) × 63.4(D) ×41.5(H) in. (998 × 1611 × 1053mm)
Weight Net weight 473 lb (215 kg) for All
Gross weight 649 lb (295 kg) for All
Environment Temperature 59 to 86 °F (15 to 30 °C)
Humidity 40 to 80 %
Working Power Printer 200W, Powder process system 1100W
Included items Enthernet cable, cleaning kit, USB Flash of software etc.
Connectivity Enthernet cable
Power requirements 8A Single-phase 220 V, 50HZ
Acoustic noise level 75 dB (A) or less
Software System Requirements
Print control System Windows® 7/10 (64 bit) Recommend
(Bundled) CPU Intel® Core™ i5, 2.5 GHz or more
RAM 8 GB or more
Video card and monitor A resolution of 1,152 × 854 with 16 bit color or higher
HDD Install space 1 GB or more
Working space 100 GB
