Focus Acaleph-891s Single Pass UV Flatbed Printer

Focus Acaleph-891s Single Pass UV Flatbed Printer

Speed: 10~40+ m/min
Max Width: 33~470mm
Print Heads: Eps-i1600/i3200 or Ricoh G5/G6
Media: PET Film, Bags, Carton, Plastic, Glass, Metal...
Ease: Online Guidance, Touchscreen, No RIP
Custom Solutions: Global Shipping, Efficient
Warranty: 13-Months

INQUIRY PDF Format

Description

Inquire Fast Single Pass UV Flatbed Printer Now for a Rapid Quote

Watch the Focus Acaleph-891s One Pass UV Flatbed Printer in action – hooked or hopeful for business growth?

Kindly leave your contact info and needs
We'll customize a solution for you

▲

Acaleph-891s Digital Single Pass UV Printer Printing Sample

Business Card Printer

Plastic Lunch Box Printer

Metal Box Printer

Wooden Box Printer

Package Bag Printing Machine

Plastic Bag Printer

Plastic Buttons Printing Machine

Plastic Bottle Cap Printer

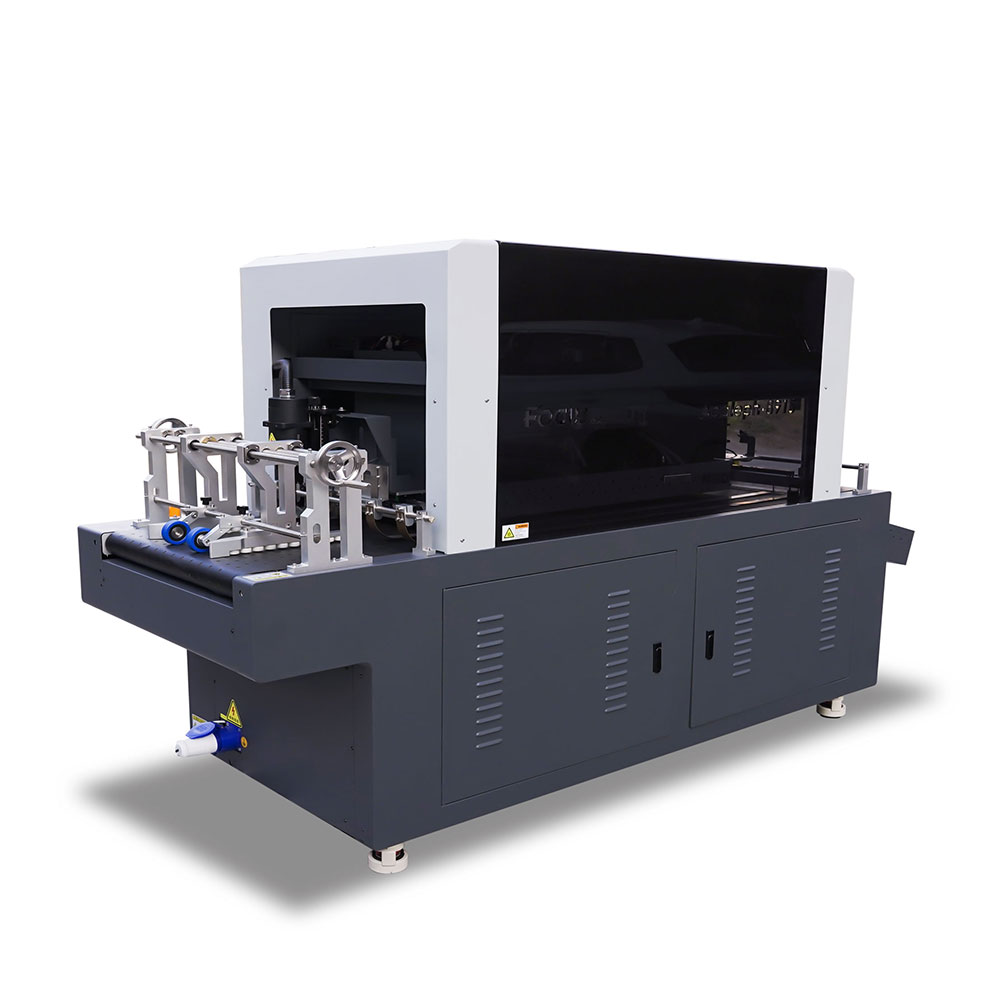

Candid Shot of The Acaleph-891s Digital Single Pass UV Printer

The Technical Details of Acaleph-891s One Pass UV Flatbed Printer

Maximize your printing potential with our wide 33~470mm design, compatible with EPSON I3200, I1600, RICOH G5, and more.

Print Different Width Materials Easily: A 60cm extra-wide printing guide enables printing on various material widths effortlessly.

High Precision Y-Axis Printing: Single pass UV printer utilizes a 2500 PIR high-precision meter wheel for accurate Y-axis movement and printing.

Achieve automatic page printing for different material thicknesses with our high-precision, adjustable micrometer.

Laser Sensor for Automatic Material Thickness Detection: UV printer utilizes a laser sensor to automatically detect the thickness of printing materials.

Teflon and Stainless Steel Pressure Bars: Safeguard your printhead with Teflon and stainless steel pressure bars, preventing material warping and protecting against print head damage.

Stable and Secure Electrical Control System: A reliable electrical control system ensures the safe and stable operation of the equipment.

Integrated Array Nozzle Mounting Base: Our streamlined design facilitates rapid installation of the print head array, ensuring swift setup.

42mm Ultra-Thick Vacuum Partitioned Adsorption Platform for Printing Soft Materials

Automatic Ink Refilling and Ink Depletion Alert: Ensuring timely ink supply for seamless printing.

Item		Specification
Maximum Printing Area		33mm~470mm (Depend on Print Head Amount)
Print Head		EPSON I1600 U1 / EPSON I3200 U1 / RICOH G5 / RICOH G6
Print Nozzle Ammount		1600X / 3200X / 1280*X (X= Print head ammount, Depend upon needs)
Printing method		Micro Piezo Inkjet Print Technology
Print resolution (dots per inch)		600DPI300DPI / 600DPI600DPI / 600DPI*1200DPI （According to different print head)
Print Head protection technology		Head anti-scratch kit
Print speed		10~40meter/min (According to different resolution and ink type)
RIP software		Control &Rip All in one (Included)
Accepted image data		Tiff, Jpeg, Bmp, Pdf.
Control interface		Touch screen go with PLC
Media type		PET Film, Bags, Carton, Plastic, Glass, Metal...
Media Pre-process		Plasma / Flame / Corona Depend upon needs
Media size	Maximum load size	600mm * Y no limited
Media size	Maximum thickness	9.05" in. (230mm)
Media margin aligment	Laser aligment	4~6pcs Automatic Laser guideline margin
Media height control	Electronic	Touch screen control electronic up down motion
Ink	Electronic Automatic Air vacuum Feeder	For extra soft material such as plastic film, soft bags etg. feeding
	Ink supply method	Negotive pressure management with dual filt system
	Type	UV curing ink / Aqueous ink
	Color	Black, Cyan, Magenta, Yellow + Spot color White, Glossy Depend upon needs
	Ink tank capacity	1500ml per each color
UV curing system	Curing technology	LED UV Curing, 405nm, Sectional curing type for KC+MY+W+V
UV curing system	Cooling technology	Water circulation cooling
Media vacuum system	Vacuum power	850W with 4 independent area
Media vacuum system	Vacuum control	Touch screen control
Dimensions	Main Printer system	97.5 (L) × 33.7 (W) × 61.8 (H) in. (2,479 × 858 × 1,571 mm) Main printer
	Frection Feeder	28.3 (L) × 33.7 (W) × 45.0 (H) in. (721 × 858 × 1,145 mm)
	Air vacuum Feeder	36.4 (L) × 46.5 (W) × 39.2 (H) in. (926 × 1,181 × 998 mm)
	Packing size	101.5 (L) × 39.2 (W) × 70.0 (H) in. (2,580 × 998× 1,780 mm) Main printer
Weight	Net weight	1430 lb (650kg) Main printer
Weight	Gross weight	1727 lb (785 kg) Main printer
Environment	Temperature	51 to 86 °F (18 to 30 °C)
Environment	Humidity	35% ~ 75%
Compressed air supply		Minimum 80psi 6bar, 60L volume required
Included items		Print cable, cleaning kit, USB Flash of manuals and installation videos
Connectivity		Ethernet cable
Power requirements		20A Single-phase 220~240VAC, 50HZ/60HZ
Acoustic noise level		75 dB (A) or less

Software System Requirements
Print control	System	Windows® 7/10 (64 bit) Recommend
(Bundled)	CPU	Intel® Core™ i5, 2.5 GHz or more
	RAM	8 GB or more
	Video Card and Monitor	A resolution of 1,152 × 854 with 16 bit color or higher
	HDD	Install space 1 GB or more
	HDD	Working space 100 GB
